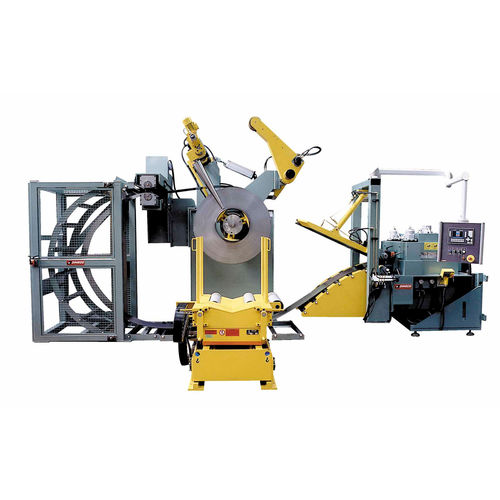

Sheet metal straightener-feeder

55 years of continuous coil line technology development has elected Dimeco as one of the world biggest supplier to the stamping market as well as to fabricating. Dimeco provides the world widest range of equipment, matching needs of small press shops up to major automotive market players. Huge R&D work has been achieved to develop the new levelling technologies required by the evolution of materials available today (high press steel). Main features of equipment Coil weight from 200 kg (440 Lbs) to 35 tons (77,000 Lbs) Strip width from 200 mm (8”) to 2000 mm (79 “) Material thickness from 0.1 mm (4 thou) up to 10 mm (0.4 in.) Material quality from soft aluminium up to 1500 Mpa high press steel Coil cradle, 3 in 1 combination, short line & long line configurations match all applications. Long lines The most efficient, the fastest, the one to use with delicate materials. Straightener and feeders are separated by a loop allowing the feeder and the press to run at maxi speed with a smooth and continuous process in the straightener. Speed software automatically matches feeders and coil unwinding speed together with press rate and feed length. Infeed peeler & table allow safe and quick coil change process. Short lines How to save space… The best for heavy materials… Straightening and feeding operations are combined in one machine. We use either a loop under coil or a rear loop when possible. For specific applications, a servo driven uncoiler is used to match feed rate.
