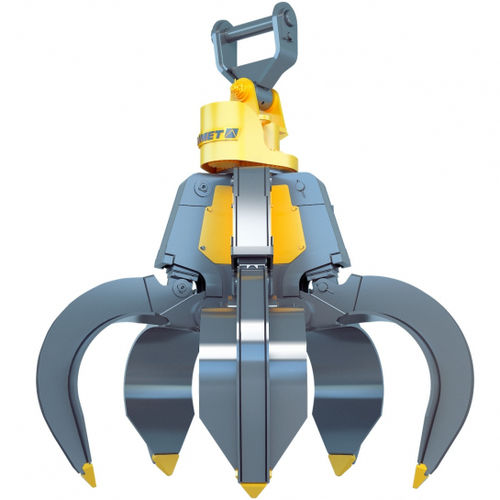

Orange peel grab DS series

hydraulicscrapwaste collection

Grapples are used for handling of bulk, long, high capacity and non-standard cargo. Features and advantages • - High-resistance Hardox 450, 500 steel provides durability and increases load capacity by reducing the dead weight of the structure. • - Concealed placement of hydraulic cylinders eliminates damage to the most critical components when working in extreme conditions while maintaining easy accessibility and maintainability of hydraulic cylinders. • - Сomponent unification and compatibility with the grapples of the world's leading brands ensures availability of spare parts. • - Design is completely compatible with material handlers from all leading manufacturers and easy to install to other machines. • - Basic full turn rotator. The hydraulic drive of the rotator is protected from hydraulic hits and pressure surges higher than 80 bar. Model range We offer full line of 4-tines and 5-tines orange peel grapples with load capacity up to 12 tons with grip volume from 0.5 to 1 m³. Volume 0.4m³ on request. Technical requirements Оrange peel grapple DIMET DS is compatible with the hydraulic system with operational pressure max 300 bars. The design of the attachment unit and main elements provides maximum compatibility with modern scrap handlers from the world's leading manufacturers. It is possible to install orange peel grapple on excavators and other hydraulically driven equipment.
