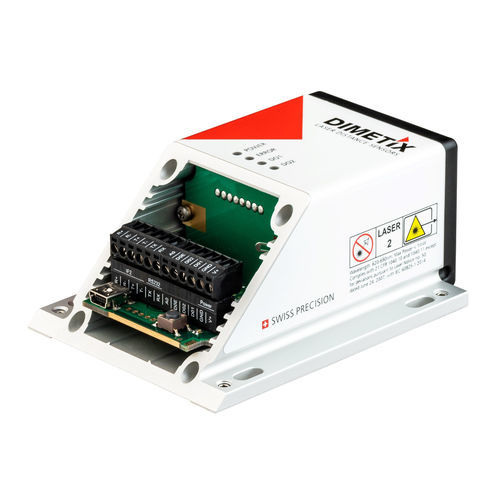

Laser distance sensor DBN-50-050

analogdigitalIP65

The D-Series Dimetix Laser Distance Sensors are at the forefront of our continuous development and innovation. They measure long distances with the highest precision reliable and speed, even in the most difficult situations. The D-Series can measure on dark surfaces – even in exterior applications with solar irradiation. With this series, which presents itself in a new modern design, Dimetix expands its product range with a device, that has an output rate of 1 kHz. Performace Accuracy @2σ typ. ±5.0 mm Repeatability typ. ±1.8 mm Max measuring rate 10 Hz Physical specification Operating temperature range -10 °C - +50 °C Degree of Protection IP65 Power Supply 12 ... 30 VDC Laser red, visible Dimension 140 x 78 x 48 Weight 350 g Interfaces Analog output 0/4 ... 20 mA max. Error ±0.2% - programmed span Digital output (programmable) 2 Digital Output (error display) 1 Digital Input 1 RS-232 Yes
