Compression load cell DKBP

button typestrain gaugeanalog

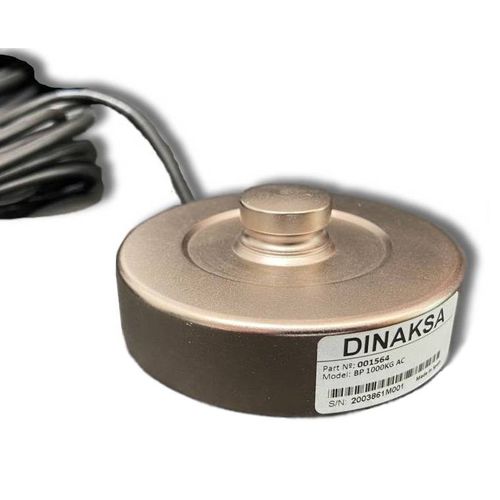

DKBP COMPRESSION LOAD CELL Cell designed to work in compression with insensitivity to load de-centering. Low profile design. Made of alloy steel, finished in chemical nickel, with anti-corrosion treatment. Note: this cell can be supplied with a lower cover. Capacities: 1, 2, 3, 4, 5, 10, 15, 20, 30, 40 ton Technical specifications * Rated load: 1 to 40t * Sensitivity: 1.4… 2.0 mV / V * Zero adjustment tolerance: 5% F.S. * Effect of temp. about sensitivity: 0.044% F.S. * Temperature effect on the zero signal: 0.035% F.E. * Compensated temperature range: -10… 40 ºC * Service temperature range: -20… 60 ºC * Input impedance: 350 Ω ± 3Ω * Output impedance: 350 ± 2Ω * Hysteresis error: 0.067% F.E. * Maximum linearity error: 0.04% F.S. * Creep (in 30 minutes): 0.06% F.E. * Maximum excitation voltage: 12V. * Min. Insulation resistance: 4 GΩ * Load limit without loss of characteristics: 150% F.E. * Minimum breaking load: 300% F.E. * Material: Alloy Steel * Finished treatment: Chemical nickel. * Protection: IP 67 * Cable type: Ø6 4x0.22mm2 * Cable length: 4 m.
