Compression load cell DKCLRringstrain gaugeanalog
Add to favorites
Compare this product
Characteristics
- Type
- compression
- Form
- ring
- Technology
- strain gauge
- Output signal
- analog
- Applications
- weighing, for crane
- Other characteristics
- with amplified output, stainless steel, steel construction, precision, nickel-plated, high-capacity, high-sensitivity, oil-resistant, corrosion-resistant, custom-made, custom, with data logger, IP67
- Rated load
Max.: 8 t
(8.82 us ton)Min.: 1 t
(1.1 us ton)- Length
41.5 mm, 64 mm
(1.634 in, 2.52 in)- Height
Max.: 22 mm
(0.87 in)Min.: 15 mm
(0.59 in)
Description

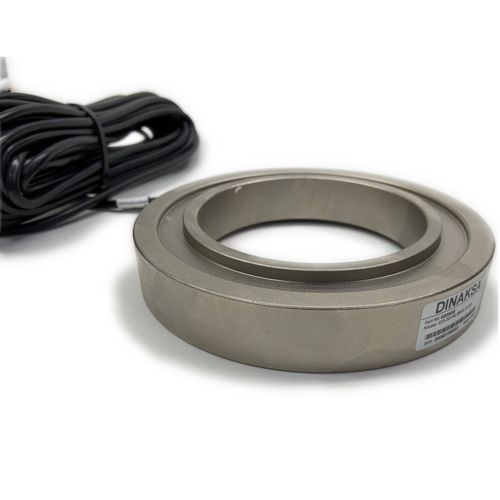

DKCLR COMPRESSION LOAD CELL
Cell designed to work in compression.
It is manufactured in alloy steel with anti-corrosion treatment of chemical nickel or stainless steel, according to the client's needs.
TECHNICAL CHARACTERISTICS
* Rated load (Cn): 1, 2, 3, 4, 6, 8 t
* Sensitivity: 1.2. 2.0 mV / V
* Zero adjustment tolerance: 5% F.S.
* Compensated temperature range: -10… 40 ºC
* Service temperature range: -20… 60 ºC
* Non-linearity: 0.044% F.E.
* Hysteresis error: 0.047% F.E.
* Input resistance: 350 ± 10Ω
* Output resistance: 350 ± 2Ω
* Maximum excitation voltage: 12V
* Min. Insulation resistance (V. Test = 100 V): 4 GΩ
* Maximum workload: 150% F.E.
* Breaking load:> 300% F.E.
* Protection: IP 67
* Cable type: Ø4 4x0.14mm2
* Cable length: 4 m.
* Material: Alloy steel
* Finished treatment: Chemical Nickel
