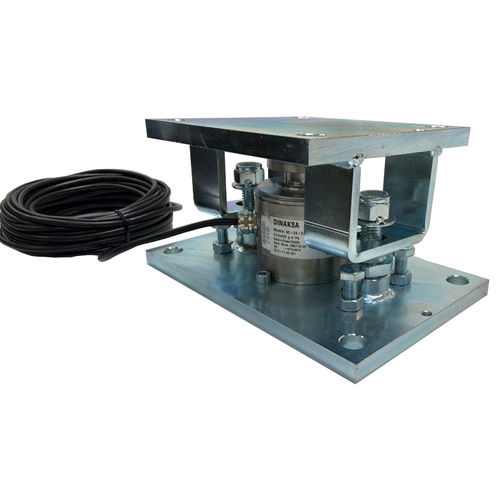

Compression load cell DKSK

block typestrain gaugeanalog

DKSK COMPRESSION LOAD CELL Load cell specially designed for weighing in silos, with built-in anti-tip support. Made of double shear, made of alloy steel with chemical or stainless nickel protection. incorporates a low-profile support, treated with highly corrosion-resistant paint. TECHNICAL CHARACTERISTICS * Capacities: -> DKSK-P: 1, 2, 3, 4, 5, 6 ton -> DKSK-M: 8, 10, 15 ton -> DKSK-G: 20, 25, 30, 35, 40, 50, 60 ton * Sensitivity: 2.0 mV / V ± 0.1% * Compensated temperature range: -10… 40 ºC * Input impedance: 760 Ω ± 20Ω * Output impedance: 700 Ω ± 4Ω * Min. Insulation resistance (V.Test = 100v): 4 GΩ * Maximum workload: 150% F.E. * Load limit without loss of characteristics: 180% F.E. * Minimum breaking load: 300% F.E. * Shielded cable type * Power in 30 minutes: ± 0.025% F.E. * Effect of temp. about sensitivity: ± 0.023% F.S. * Temperature effect on the zero signal: ± 0.018% / 5ºC * Tolerance in sensitivity adjustment: ± 0.1% F.S. * Zero adjustment tolerance: 1.5% F.S. * Maximum excitation voltage: 24V. * Maximum linearity error: ± 0.020% F.S. * Non-repeatability: ± 0.012% F.S. * Combined error: ± 0.029% F.S. * Hysteresis: ± 0.033% F.S. * Cable: 6x0.25mm2 / 8meters * Protection: IP 67 * Cell Material: Alloy steel (Stainless steel option) * Surface treatment: Chemical nickel (Alloy steel only)
