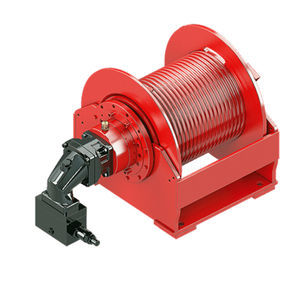

Hydraulic winch SRD series

hoistinggearrotary drum

The standard range covers from 500 kg to 30 Tons line pull. Winches are equipped with orbit motors or axial piston motors, negative multi disc brake and a variety of accessories are available e.g.: tension rollers, third wrap indicators, load sensing, grooved drums, level-winds, absolute encoders. Medium Marine Grade Painting is standard on all winches. Customized winches can be produced according to specific requirements e.g. (manriding, double cable drum, special grooved drum, customized dimensions).ty and performance. The Dinamic Oil range of lifting winches comprises the following models: • NP-NPA series with line pull (last layer) from 400 a 1250 daN; • A series with line pull (last layer) from 450 a 4600 daN; • P series with line pull (last layer) from 600 a 1950 daN; • S - SE series with line pull (last layer) from 1570 a 4500 daN; • SRD series with line pull (last layer) from 6200 a 23000 daN; • SW series with line pull to request. The SRD series winches are designed using the WD gearboxes. These units are compact and come with a hydraulic limit switch for both hoisting and lowering.
