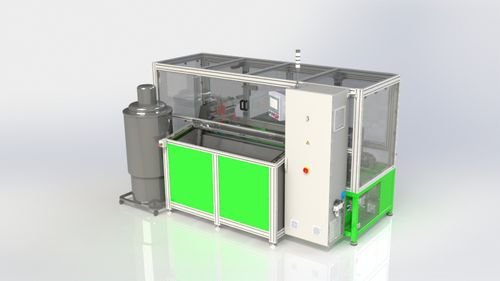

Pneumatic chamfering machine MAQ

tubeautomaticprecision

The machine presented executes internal and external chamfering in both extremities of the tube. Characteristics: - Automatic tube feeding - Tube length measurement (Precision of 0,1 mm). - Automatic internal and external chamfer on both extremities. - Vacuum suction system to remove scrap. - Cleaning station to remove internal. - Cycle time 5 seconds per unit. - Equipment capable of processing tubes from 120mm up to 1500 mm. - Automatic tube length adjustment by HMI. - Capable for aluminium and steel tubes with different diameter and thickness. Applications: - Automotive industry, metalworking or general industry where tube chamfering is required. Technical information: - Tube diameter (mm): (Customizable) - Tube length: from 120mm up to 1500mm - Power: 11,5 kW - Voltage: 400 V, 3Phase, 50 Hz - Pneumatic pressure: 6 bar - Dimensions: 3350mm x 2579mm x 2336mm - Cycle time: 5 seconds / tube
