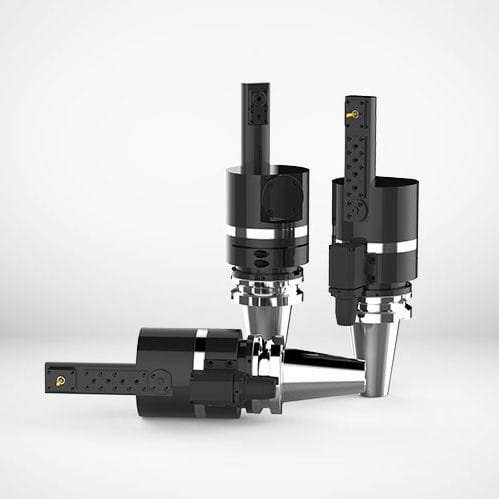

Milling angle head SAH

cuttingnarrow

Optimized for narrow width machining We introduce the slim angular head SAH from Dine Inc. which is optimized for small holes and narrow gaps. Optimized for gap machining It is an excellent angular head for difficult machining where interference occurs and the narrow surface of the machine with Min work piece inner diameter Ø40, Min cutting width 32mm Use of exclusive collet for stable processing This is an angular head that need use a dedicated collet for stable processing that supports ∅3~∅6 tool tightening range therefore, various processing is possible. Optimized for milling, drilling processing It supports various machining areas such as milling, DRILLING, FLANK MASHING, INNER SIDE MASHING, etc. inside the narrow width. The reason why SAH from Dine Inc. is good. Optimized for narrow hole processing Optimized for difficult machining with narrow faces and interference Easy machining range change Using a dedicated collet, it supports the tool clamping range from ∅3 to ∅6 . Various processing support Supports various processing such as milling, drilling, and flank machining in narrow widths Product Features It supports MAX 3,500 RPM and can clamp tools from ∅3 to ∅6 using a dedicated collet.
