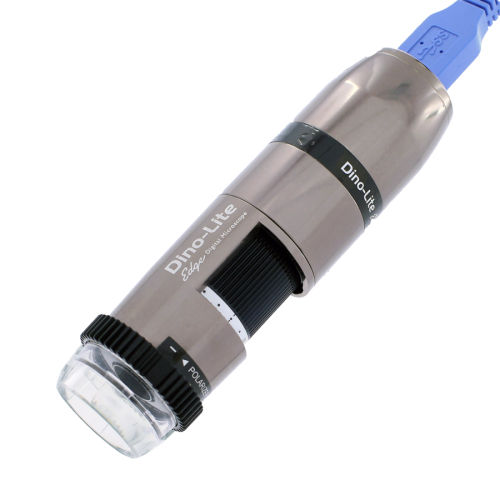

High-speed microscope AM73915MZT - USB3.0
opto-digitaldigitallaboratory

High-speed microscope - AM73915MZT - USB3.0 - Dino-Lite Europe/IDCP BV - opto-digital / digital / laboratory
High-speed microscope - AM73915MZT - USB3.0 - Dino-Lite Europe/IDCP BV - opto-digital / digital / laboratory
High-speed microscope - AM73915MZT - USB3.0 - Dino-Lite Europe/IDCP BV - opto-digital / digital / laboratory - image - 2
Add to favorites
Compare this product


Characteristics

Type
opto-digital, digital
Technical applications
laboratory, measuring, inspection, for materials research, for materials inspection, industrial, for materials analysis, metrology, for quality control
Observation technique
bright field, polarization
Configuration
compact, portable
Light source
LED illumination
Other characteristics
zoom, USB
Magnification

Max.: 220 unit

Min.: 10 unit

Description

The Dino-Lite AM73915MZT is part of the High Speed range with USB 3.0 connection. It offers superb uncompressed image quality and color reproduction in a robust, compact and appealing metal housing. USB 3.0 adds a new transfer mode called "SuperSpeed" (SS) capable of transferring data up to 5Gbits/s (625MB/s). Dino-Lite models with USB 3.0 offer an image transfer speed of up to 45FPS at a 1280 x 960 resolution. SuperSpeed allows you to take advantage of the full power of the Dino-Lite Edge Series optics including improved colour accuracy and image quality. EDOF allows users to automatically capture multiple images at different depths and automatically combine them into one clear image. EDR automatically captures and combines multiple images at different exposure levels to produce a final image with greater dynamic range. The AMR function automatically detects and displays the magnification of the Dino-Lite. The magnification is displayed within the Dino-Lite software and stored with the captured picture and simplifies the measuring process. The AM73915MZT is one of the most high-end Dino-Lite products available and the top-level product within the Dino-Lite USB 3.0 range. For professionals who are looking for high speed data transfer, the best available image quality and are looking for advanced features this is the model of choice.
