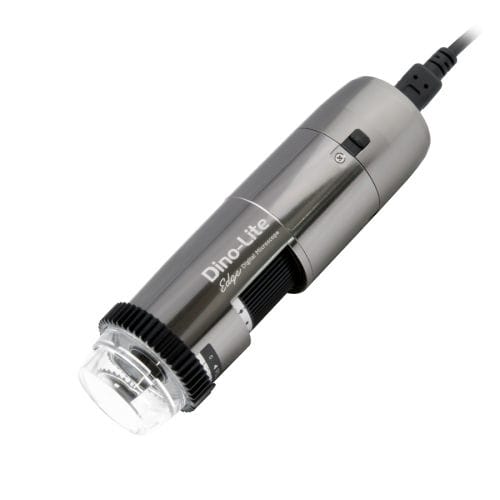

Opto-digital microscope AF7515MZT
inspectionmeasuringpolarization

Opto-digital microscope -  AF7515MZT - Dino-Lite Europe/IDCP BV - inspection / measuring / polarization
Opto-digital microscope -  AF7515MZT - Dino-Lite Europe/IDCP BV - inspection / measuring / polarization
Add to favorites
Compare this product


Characteristics

Type
opto-digital
Technical applications
inspection, measuring
Observation technique
polarization
Configuration
compact, portable
Light source
LED illumination
Options and accessories
computer-assisted
Other characteristics
digital camera, USB, automatic, image capture
Magnification

Max.: 220 unit

Min.: 10 unit

Weight

135 g
(4.8 oz)

Length

10.5 cm
(4.1 in)

Description

With the use of the latest, cutting-edge optics, a brand new 5 megapixel sensor and several special features such as flexible LED control (FLC), Automatic Magnification Reading (AMR) and full aluminum body, the Dino-Lite AF7515MZT is a marvel of technology and the best choice for the high-demanding professional. The Dino-Lite AF7515MZT offers superb image quality and color reproduction in a robust, compact and appealing housing. The AF7515MZT is part of the universal range and with its standard working distance and wide magnification range from 10 – 220x, it is suitable for a wide range of applications. Because of the built-in polarization filter this model is ideal when working with shiny or reflective objects such as metal, plastic, glass, jewelry, electronics, etc. The AMR function is of particular importance when the measurement functions are frequently used. The main features of the AF7515MZT are: • 5 Megapixel Edge sensor • 10-220x magnification • Integrated polarizer • Aluminum housing • Automatic Magnification Reading (AMR) • Flexible LED Control (FLC) • Extensive measurement functions • Calibration • Exchangeable front caps • Wireless Ready • And more...
