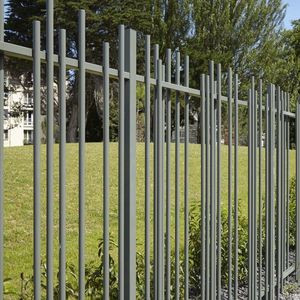

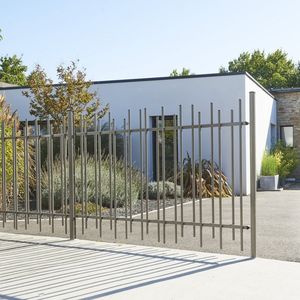

Galvanised steel railing myMIX®

CHOICES AND MODULAR DESIGN • Square or round posts, base-plated or embedded. • Square bars (which can be pointed in 2 directions) or round bars (choice of 3 diameters), overstanding if required. EASY TO INSTALL • Railings and posts compatible with each other. • Angle and step management made possible due to the connection system. STYLE AND FINISH • Site enhancement. • Interlocking assembly with invisible security connections. • Modern design compatible with all architectural styles. FROM BOUNDARY DEFINITION TO SECURITY • The different variants on offer enable all your requirements to be met with style. Dimensions 1,00 x 2,54 m 1,20 x 2,54 m 1,50 x 2,54 m 1,70 x 2,54 m 1,80 x 2,54 m 2,00 x 2,54 m 2,30 x 2,27 m 2,50 x 2,27 m • Railings: – 50 × 30mm rail – Bar centre distance of 135mm • Post: – Square 60 × 60mm – o Round 60mm dia. • Finish: – Railings and posts in Sendzimir galvanised steel with polyester coating – Connection accessory: stainless steel “U” + self-tapping screw + round or square polyester end cap
