Control unit with display KIT series

compactdigital

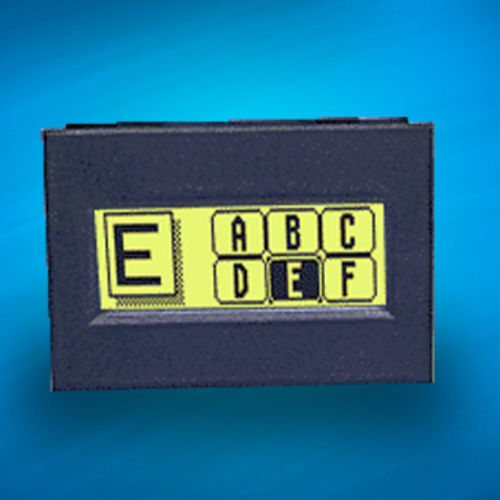

Displays with RS-232 Integrated touch panel, scratch-resistant, anti-glare LED illumination blue-white or yellow/green many character sets incl. 8-times zoom function High-level graphics functions (straight line, bar chart, menu) Macro programming, storage of images and text 16 digital inputs and outputs with optocouplers as accessories Available immediately Various sizes from 120x32 up to 320x240 dots Windows® simulator software for demonstartion and development Brief description The EA KIT120-5LEDTP graphics kit (see photo above) is a fully assembled control from 2,4" to 5,9" and operating unit with a variety of integrated functions. As well as offering excellent super-twist contrast, the compact display can be put into operation immediately. It is controlled via the standard RS-232 or RS-422 interface. In addition to complete graphics routines for display output, the graphics kit also contains a wide variety of fonts. High-level language-type graphics commands are used for programming. There is no longer any need for the time-consuming programming of character sets and graphics routines. There's no need for any driver software or programming tools. The ease of use offered by macros and input via touch panel make it a real power display. Have a look at the colored flyer!
