LCD display EA SER series
OLEDdot-matrixgraphic

LCD display - EA SER series - DISPLAY VISIONS GmbH - OLED / dot-matrix / graphic
LCD display - EA SER series - DISPLAY VISIONS GmbH - OLED / dot-matrix / graphic
LCD display - EA SER series - DISPLAY VISIONS GmbH - OLED / dot-matrix / graphic - image - 2
LCD display - EA SER series - DISPLAY VISIONS GmbH - OLED / dot-matrix / graphic - image - 3
LCD display - EA SER series - DISPLAY VISIONS GmbH - OLED / dot-matrix / graphic - image - 4
Add to favorites
Compare this product


Characteristics

Screen type
LCD, OLED
Type
dot-matrix, graphic
Format
128 x 64, 240 x 128, 240 x 64
Applications
control
Interface
SPI, RS-232, USB Type-C, RS-422, I2C
Configuration/mounting
panel-mount, integrated, snap-in

Description

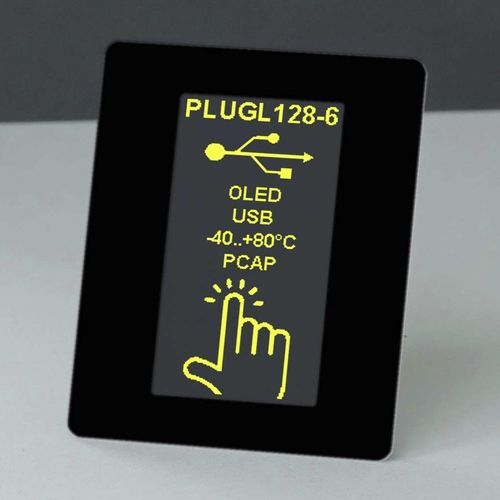

Brand new are our graphic capability OLED displays with USB connection and integrated touchpanel. They are good for wholesome control unit or as a display only. In addition to some serial interfaces like RS-232, SPI and I²C there are some digital and analoge in- and outputs also. With the use of those some simple control actions with fixed display content can be realized. Currently there are 2 sizes available with 2.9" and 82x67x21mm same as 1.7" with 55x54x21mm. EA PLUGL128-6GTC OLED with USB and ZIFF connector for FPC EA PLUGL128-6GTCZ OLED with USB and ZIFF incl. screw terminals and 26-pin IDC connector for I/O's EA PLUGS102-6GTC OLED with USB and ZIFF connector for FPC EA PLUGS102-6GTCZ OLED with USB and ZIFF incl. screw terminals and 26-pin IDC connector for I/O's Assembly is very easy with a simple put-into frontal plate and mount via self-adhesive stripes - portrait mode and landscape. Our serial devices are a dot-matrix LCD series of products that are ready for operation with a driver and a bezel or a snap-in housing. They are connected to a standard RS-232C interface (or, optionally, an RS-422). The data transmission rate can be set to 300, 1,200, 2,400 or 9,600 bps. All cursor control (line feed etc.) is automatic. The displays are equipped with LED lighting that can be switched off by software means. All displays except for 8- and 16-line displays are available for a 5V or 9-35V supply. Addressing: Thanks to selectable addresses, up to 64 displays can be addressed separately at a serial interface (EA OPT-DIP6).

Catalogs

No catalogs are available for this product.

See all of DISPLAY VISIONS GmbH‘s catalogs
