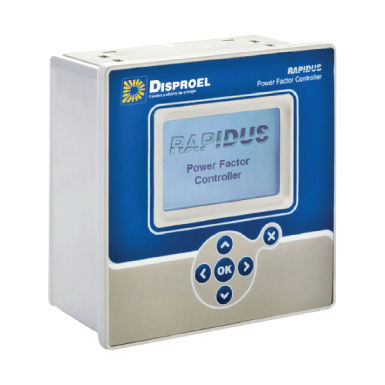

Digital power factor controller RAPIDUS

This power controller and analyzer will enable you to monitor and regulate your system's power factor in order to avoid incurring in fines imposed by your power utility provider due to an excessive consumption of reactive energy. Additionally, through alarm configuration, it will allow you to monitor and manage the system's variables. It allows you to control from 1 to 12 steps. Size: 144mm x 144mm It includes an intelligent algorithm that monitors and controls the number of operations and the time of use of the capacitors, in order to extend their life. TECHNICAL CHARACTERISTICS Harmonics analyzer: Up to 51 1 - 12 selectable steps and 2 alarm relay outputs Parameter records (VLM, VLL, I, P, S, Q, Cos φ, PF, THDi, THDv, among others) Multiple suspension alarms Communication: MODBUS RS485 Optional, adapter RS485 - USB for easy connection to any computer Nominal voltage UN (VAC): 100 - 300 Number of phases: 3 Number of current transformers: 3 Frequency FN (Hz): 45/65 Voltage measurement range (VRMS L-N): 85 - 300 Maximum commutation voltage (VAC) (in outputs relays): 250 Maximum commutation current (in outputs relays): 1.5 A CTR (current transformer ratio): Selectable from 1 to 5000 VTR (voltage transformer ratio, when applicable): Selectable from 1 to 5000
