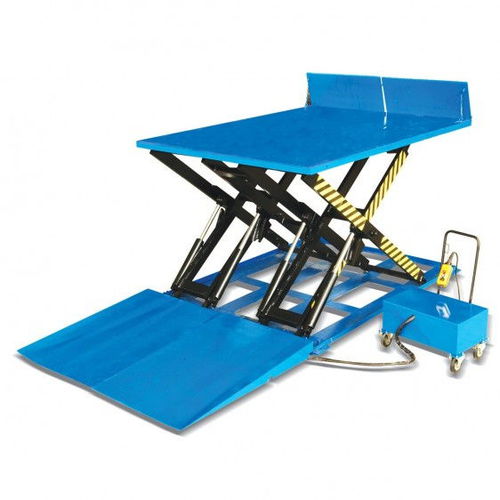

Scissor lift table MSA1700

hydraulicmobileloading

Lifting system by simple scissor mechanism with free bearings maintenance. The lifting force is produced by the actuation of one or two oleohydraulic cylinders fixed inside the scissor mechanism. Each cylinder has an integrated valve that limits the speed of descent to approximately 50% of the speed admitted by the hydraulic circuit. Outdoor power unit. Stop control by the end of the course. The table is controlled by a push button box connected to the electrical panel. It has a «present operator» function, whereby table movement occurs only while the «↑» or «↓» pushbuttons are activated. The push-button box also includes an interlock «STOP» safety stop button, when the button is pressed, the table movement stops, to return the button to its original position it must be turned clockwise direction. It incorporates fixing support for inspection. Labeling with risk prevention pictograms. Complies with CE standards EN1570 and ANSI / ASME. The lifting tables represent a role model for companies in fulfilling their responsibility to provide a safe working environment in accordance with European directives. Likewise, it complies with ISO 9001 / ISO 14001. It is delivered MOUNTED AND READY TO BE CONNECTED. Supplied with documentation: instructions for use and maintenance and EC declaration of conformity. Supplied in Ral5002 color.
