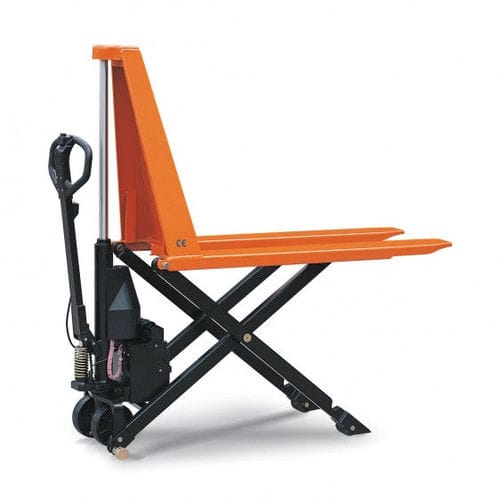

Electric pallet truck MSA0120

stand-onhandlingrugged

The electric lifting pantograph pallet truck is distinguished by its great versatility in use. It can be used as a conventional pallet truck and, at the same time, as a lifting system to improve load-handling processes. The lifting system is carried out by a single-acting hydraulic pump equipped with an overload valve. The elevation takes place thanks to an 800W motor, a pump and a 12V and 60Ah battery. The lowering is done manually by releasing the valve from the hydraulic unit, which results in a uniform lowering. The pallet truck can be moved with load up to a height of 400 mm; then the front rollers are lifted and the pallet truck is fixed to the ground by the pantograph support. The ergonomic rudder helps the operator to work safely while working. High quality hydraulic pump. Compact, firm and robust steel structure designed with high quality materials designed to resist shock and all kinds of loads. Forks with rounded tip for easy access to any type of pallet. No routine maintenance tasks are required. Rubber-coated aluminium rear wheels. Structure painted in blue Ral 5002.
