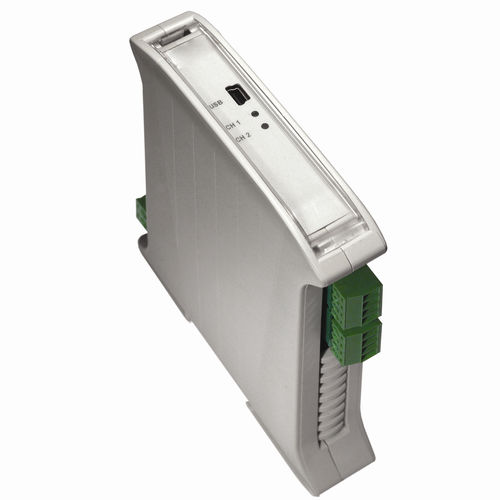

DIN rail signal isolator-converter KOS1750

dual-channel

The KOS1750 is a cost-saving dual channel signal conditioner that acquires a bipolar voltage or current signal, and isolates to offer ranged industrial process output signals, such as 0 to 20mA, 4 to 20mA, 0 to 10V, 1 to 5V DC. The unit is configured with the use of their simple-to-use configuration software USB SpeedLink. The USB Speedlink provides the operator two levels of configurations, a basic current/voltage signal converter wherein the unit can be set as dual channel or signal splitter, or for more improved applications. A configuration menu provides a broad variety of user-specified functions, consisting of process scaling and profiling, maths functions, signal damping, sensor linearization and signal preset for diagnostics functions.
