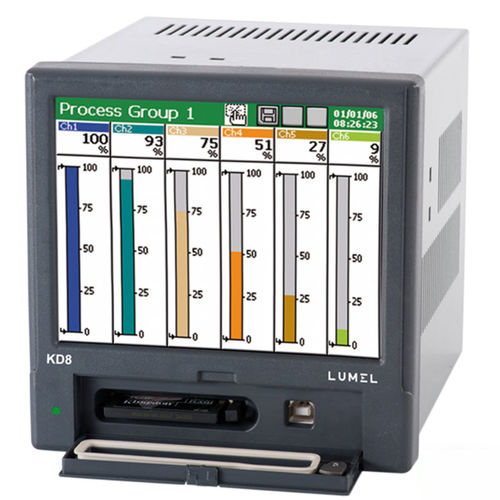

Chart recorder KD8

digitalnetworkalarm

KD8 recorder is applied as a data acquisition station in measuring systems. It finds application to measure, visualize and supervise technical process parameters in various industrial branches, e.g. in pharmacy, food, chemical. KD8 recorder complies with the regulation 21 CFR Part 11, regulation for electronic records and signatures issued by Food and Drug Administration (FDA). MEASURING INPUTS and OUTPUTS 3 or 6 galvanically isolated analog measuring channels 6 or 12 alarm outputs (2 for each chanel) 4 or 8 digital inputs DATA EXPOSURE Linear and bar trends, Digital and analog indicators Statistics. Each channel has the possibility to assign settings as: colour, name, range and presentation view. To illustrate the process run, the customer can choose many forms of data presentation DATA ARCHIVING Exchangeable external memory (CompactFlash card) 6 MB internal memory with data support WORK SAFETY To ensure the recorder work safety in the network, each customer can have individual login and password PC SOFTWARE KD8 SETUP, KD ARCHIVE, KD CONNECT and KD CHECK programs are destined for KD8 recorder service The KD8 SETUP program serves to configure KD8 recorders. The exchange of configuration data between the recorder and PC is carried out through the USB interface or the CompactFlash card
