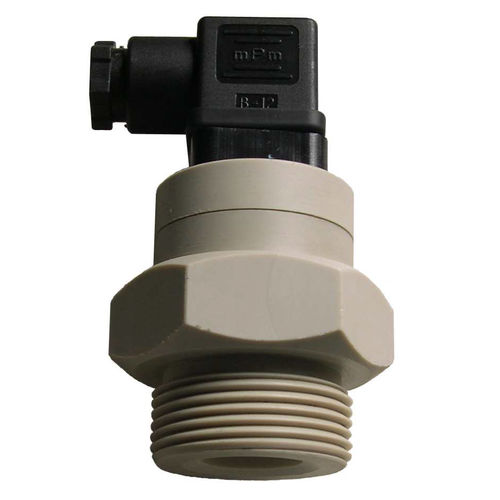

Relative pressure transmitter DV301

absolutevacuummembrane

• Radiating membrane pressure transmitter • Body Material polypropylene • Pressure measurement: relative, absolute and vacuum • Thread to process: 1 ¼ BSP • Measuring Sensor: ceramic • Outputs: 4÷20 mAdc. o 0÷10 Vdc. • High precision ceramic • Sensor and long-term stability Overview This series of surface pressure transponder transmitters made of polypropylene have been developed to cover most industrial applications. Typical are those intended for continuous measurement of aggressive gases or liquids (even viscous).The transmitter has a range of fixed measuring ranges from 0 … 250 mbar to 0 … 250 bar (on demand is supplied with the appropriate range for each installation, pressure is relative, absolute or vacuum). These transmitters can be adapted to our program of cooling for high temperature applications and process the full range of separators for the chemical, paper, food ,… Generic applications: • Level control processes (including impurities)) • Pumps / Compressors • Pressure measurement in water circuits • Hydraulic / Pneumatic • Machine tool • Agricultural machinery • Ventilation / Heating • Control Engineering and regulation The transmitter has a wide range of fixed measuring ranges from 0 … 250 mBar to 0 … 10 Bar (On Demand is supplied with the appropriate range for each installation, whether relative, absolute or vacuum pressure).
