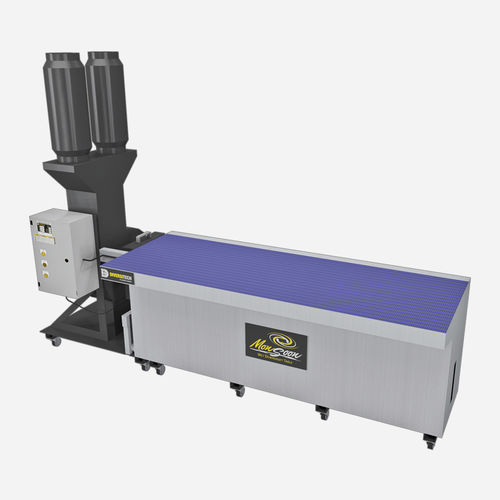

Grinding process downdraft table MDD-3X8-150W series

The MONSOON™ Wet Downdraft Table provides an all-in-one solution for the capture of combustible metal dusts including aluminum, titanium and magnesium. The downdraft table’s stainless steel construction prevents the machine from experiencing rust and corrosion and making maintenance and cleanout quick and easy. The MDD 3' x 8' includes a 12” integrated extended overhang allowing operators to sit ergonomically and comfortably at the table surface. A mist eliminator after-filter prevents the unit from exhausting humidity and water into the surrounding area. The MONSOON™ works by capturing contaminated air through the table grating and moves it into a torrent of moving water. The wet downdraft removes dust particles as they bond to the water spray, and eventually settles in the water tank for removal. Baffling inside the table creates the required turbulence to maximize filtration efficiency and prevents water from being exhausted from the machine. . Benefits Small Footprint, Easy-to-use Removable water-tree for easy cleanout Complies with OSHA guidelines Features Flexible 96" x 36" worksurface High Capture Face Velocity (250fpm) 15HP TEFC Motor producing 6500 CFM of airflow Stainless Steel Construction Auto-level Water Control System
