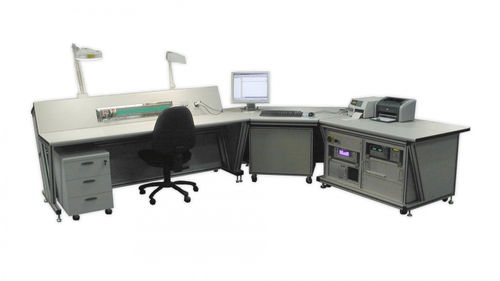

Voltage testing system DV HV6000 FT

dielectricinsulation resistanceresistance

DIVMAC’s proven solution, the DV HV 6000 FT is conceived for aircraft functional testing of components such as switches, relays, panels and signalling elements. All measurement parameters and test results can be reported during the test procedure and can be printed or saved in a file. Key Features • High voltage insulation resistance and dielectric strength tests up to 6000 VDC/VAC @ 40mA max (other options available upon request) • Low voltage tests up to 50V with adjustable current limit • Resistance measurement (Kelvin method available) • Compact, weight-optimized equipment Applicability • Functional test of components (i.e. switches, push buttons, relays…) • Finishing wiring (connectors, terminals, terminal ends, junction boxes, circuit breakers, etc…)
