Analog signal conditioner LHP

amplifiermulti-channelconfigurable

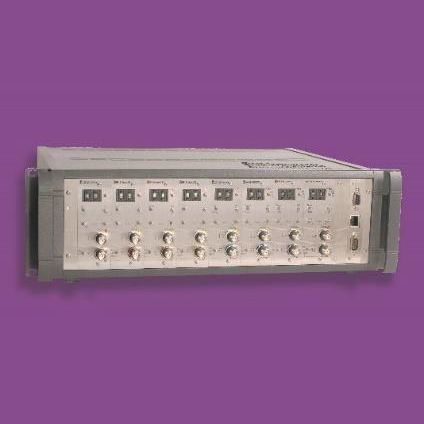

The LHP Filter is a modular switchable high or low pass filter unit available as a one or two channel DC powered unit or up to 8 channels in a AC/DC powered chassis. The units both use simple BNC input/output connectors on the front panel and offer user selectable AC/DC coupling as well as fixed IEPE signal source (4mA/24VDC) via a 3 way switch. A full range of filters are available including (must be specified when ordering, see graphs for filter responses) • Butterworth • Bessel • Anti-aliasing • General Purpose • Input Overload Indicator • Switchable High/Low pass • Single ended/differential input • Modular system • 6 gain steps to x50
