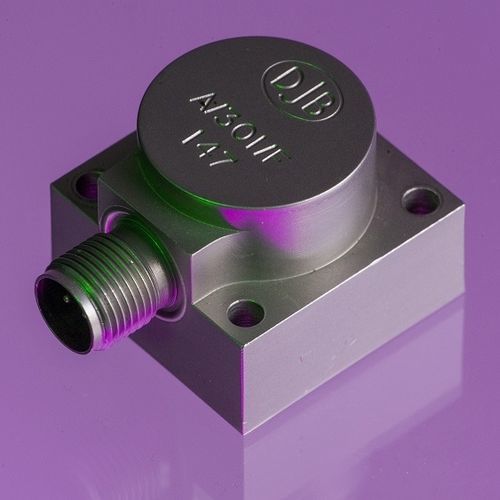

1-axis accelerometer A/301/F

piezoelectrichigh-temperaturehermetic

Aerospace Machine Monitoring Condition Monitoring Industrial General Vibration Measurement Bearing analysis High output industrial grade vibration transducers. High temperature (A/301/F/HT) 25pC/g version is rated to 400°C signal output is floating, via 2 pole hermetic connector, thus minimizing common mode interference. Ingress of contaminants into the transducer and/or connector will degrade data. Transducer and cables can be supplied proof pressure tested to 80bar, individually and as assemblies. Pressure tested assemblies may be disconnected for ease of installation, subsequently replacing the sealing ring between the connector shells. The /HT is proof to 400°C exposure and is therefore suitable for a gas turbine bearing vibration monitoring with the provision that a low pass inline filter may be needed to minimize blade passing frequency modulation, which gives rise to spurious phantom low frequency signal generation. High temperature operation of the HT may subject to degradation due to increased pyro-electric charge generation, together with a significant fall in insulation resistance. Instrumentation bandwidth should be constrained to the minimum needed measurement integrity. A/301’s comprises isolated Konic Shear sensing element housed in all welded hermetic case. Internal electrical connections are welded. Pressure and thermal cycle tests are recommended for hostile environment applications All DJB Accelerometers are calibrated on site prior to despatch, and are accompanied by a calibration chart with temperature and frequency responses listed.
