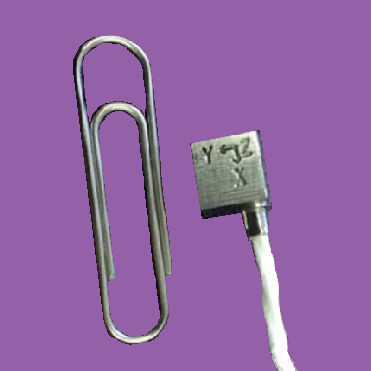

Triaxial accelerometer AT/08

piezoelectricruggedminiature

• Adhesive Mounting • Lightweight Stainless Steel Design • Three individual Shear Sensing Elements • Rugged design Modal Analysis of lightweight structures Automotive Aerospace Impact Testing Vibration Shaker Testing Structural Testing Auto/Aero structural body surveys General Vibration Measurement An Ultra-lightweight miniature triaxial IEPE accelerometer comprising of three voltage output piezoelectric accelerometer elements mounted orthogonally within a stainless steel block. The use of independent shear sensing elements ensures a rugged and repeatable triaxial measurement under the most extreme conditions. This design will outperform single element devices. The AT/18 uses high temperature piezo-ceramics as standard to ensure thermal stability. The accelerometer features a 1m integral cable which terminates with the industry standard 1/4-28 UNF plug, Extension cable assemblies of any length can be provided breaking out to 3 BNC plugs The AT/18 is available with DJB’s unique high temperature IEPE solution capable of testing up to 200°C Standard sensitivity options are from 1mV/g up to 10mV/g All DJB Accelerometers are calibrated on site prior to despatch, and are accompanied by a calibration chart with temperature and frequency responses listed. Periodic calibration can be carried out with our VC-01 Handheld Calibrator whilst we also offer a full calibration service including cross axis checks to aid accuracy of data. We are able to provide this service for all makes of accelerometer with a full report given for each device. Please contact us with an enquiry
