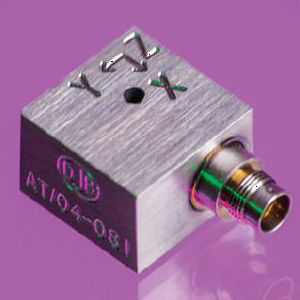

Triaxial accelerometer AT/04

piezoelectricadhesiveindustrial

Features • Adhesive Mounting or 10-32 Tapped base • Lightweight design • 3 x KONIC Shear Sensing Element for minimised cross axis. • Can be used at -70°C with a ±10% sensitivity variation • Electrically Insulated individual inserts, eliminating ground loop interference. Applications •Modal Analysis of lightweight structures •Automotive •Aerospace •Impact Testing •Industrial •Vibration Shaker Testing A lightweight tri-axial vibration transducer comprising of three charge output Konic Shear piezoelectric sensing elements mounted orthogonally within a titanium block with fully welded construction. The AT/04 is based upon the A/24 single axis sensing element and maybe considered as an alternative to the A/31 or A/34. However, the latter by virtue of being a grouping of single axis devices, are repairable and in addition the physical separation of the cable leads to visible signal axis traceability. With a 4 pin connector available with standard or ruggedized single cables with three BNC labelled breakout leads the AT/04 is well suited to Automotive/Aerospace applications Calibration All DJB Accelerometers are calibrated on site prior to despatch, and are accompanied by a calibration chart with temperature and frequency responses listed. Periodic calibration can be carried out with our VC-01 Handheld Calibrator whilst we also offer a full calibration service including cross axis checks to aid accuracy of data. We are able to provide this service for all makes of accelerometer with a full report given for each device. Please contact us with an enquiry
