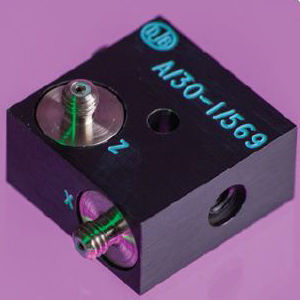

Triaxial accelerometer A/30

piezoelectrichigh-temperaturehigh-sensitivity

Features • Mounting via cut through holes, see datasheet for available options. • Ultra lightweight design • High Sensitivity KONIC Shear Sensing Element. • Electrically Insulated individual inserts, eliminating ground loop interference. • Microdot Connector - 10-32 UNF Applications •Modal Analysis of lightweight structures •Automotive •Aerospace •High Temperature •Machine Monitoring •Condition Monitoring •Impact Testing •Industrial •Vibration Shaker Testing General purpose triaxial vibration transducer compromising three welded Konic Shear sensing elements bonded orthogonally into hard anodized aluminium housing. The inserts are electrically insulated individually and from the housing, thus eliminating ground loop interference. The additional mechanical isolation implicit in the construction provides near elimination of strain induced error. The spatial response of a structure to dynamic forcing, may lead to erroneous single axis vibration or shock measurement, due to the inherent directional property of the transducer. In cases where is deemed to be a problem, an orthogonal three axis measurement, allowing computation of absolute value and direction offers a solution. The d33 component suppression property of the Konic design, resulting in minimization of cross axis error, is particularly advantageous for three axis measurement integrity.
