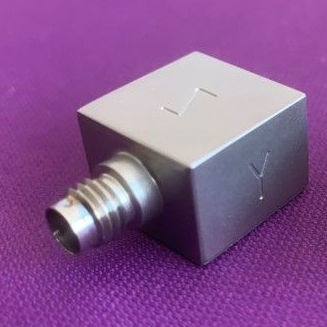

Triaxial accelerometer AT/14

IEPEshearadhesive

• Adhesive Mounting or 10/32 tapped base. • Lightweight Titanium Design • KONIC Shear Sensing Element. Modal Analysis of lightweight structures Automotive Aerospace Impact Testing Vibration Shaker Testing Structural Testing General Vibration Measurement Auto/Aero Structural Body Surveys A lightweight general purpose triaxial accelerometer comprising of three voltage output piezoelectric sensing elements mounted orthogonally within a titanium block with welded construction. The AT/14 is based upon the unique DJB Konic Shear® design and maybe considered as an alternative to the A/131 or A/134. However, the latter by virtue of being a grouping of single axis devices, are repairable and in addition the physical separation of the cable leads to visible signal axis traceability. With a ¼-28 UNF 4 pin connector and ruggedized single cables with three BNC labelled breakout leads the AT/14 is well suited to Automotive/Aerospace applications. All DJB Accelerometers are calibrated on site prior to despatch, and are accompanied by a calibration chart with temperature and frequency responses listed. Periodic calibration can be carried out with our VC-01 Handheld Calibrator whilst we also offer a full calibration service including cross axis checks to aid accuracy of data. We are able to provide this service for all makes of accelerometer with a full report given for each device. Please contact us with an enquiry Cable Repair Service to make current cabling as good as new, cutting costs whilst good for the environment Specialist Cable Assembly - for all manufacturers Cable and connector stock held for a quick turnaround
