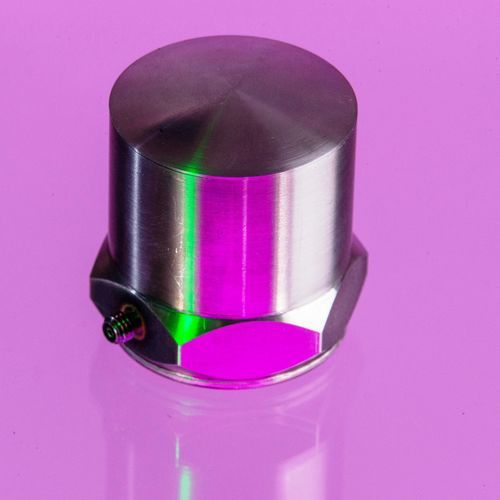

Seismic sensor A/800

• Robust Design • High Operating Temperature of up to 250°C Standard • Ultra High Sensitivity - 9nC/g output The A/800 is the highest sensitivity accelerometer in the DJB range. Using multiple shear plates and large masses the 9000pC/g sensitivity makes it perfectly suited to seismic surveys and other micro g level measurement – virtual immunity to strain input side effects provides guarantee of low frequency, measurement integrity. System noise level of 10-2pC is equivalent to 1mg. With bandwidth restricted to 1 kHz, noise floor should be significantly below this. Typical applications include: Building vibration surveys Ground vibration monitoring during construction or earth moving Large structure vibration measurement Bridge vibration measurement Medical instrument installation surveys This Accelerometer is also available as an IEPE version -A/1800. All DJB Accelerometers are calibrated on site prior to despatch, and are accompanied by a calibration chart with temperature and frequency responses listed. Periodic calibration can be carried out with our VC-01 Handheld Calibrator whilst we also offer a full calibration service including cross axis checks to aid accuracy of data. We are able to provide this service for all makes of accelerometer with a full report given for each device. Please contact us with an enquiry Cable Repair Service to make current cabling as good as new, cutting costs whilst good for the environment Specialist Cable Assembly - for all manufacturers Cable and connector stock held for a quick turnaround
