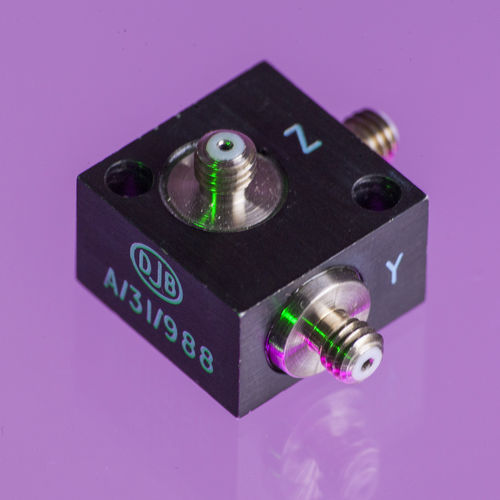

Triaxial accelerometer A/31

piezoelectrichigh-temperatureindustrial

Features • 2 x 3.25mm cut through holes for secure mounting. • Lightweight design • KONIC Shear design. • Electrically Insulated individual inserts, eliminating ground loop interference. • Microdot Socket - 10/32 UNF Thread. Applications •Modal Analysis of lightweight structures •Automotive •Aerospace •High Temperature •Machine Monitoring •Condition Monitoring •Impact Testing •Industrial •Vibration Shaker Testing •Structural Testing Lightweight triaxial vibration transducer compromising three Konic Shear sensing elements all welded inserts bonded orthogonally into hard anodized aluminum housing. The inserts are electrically insulated, individually and from the housing, thus eliminating ground loop interference. The additional mechanical isolation implicit in the construction provides near elimination of strain induced error. The spatial response of a structure to dynamic forcing may lead to erroneous single axis vibration or shock measurement due to the inherent directional property of the transducer. In cases where this is deemed to be a problem, an orthogonal three axis measurement, allowing computation of absolute value and direction offers a solution. The d33 component suppression property of the Konic Shear design, resulting in minimization of cross axis error, is particularly advantageous for three axis measurement integrity.
