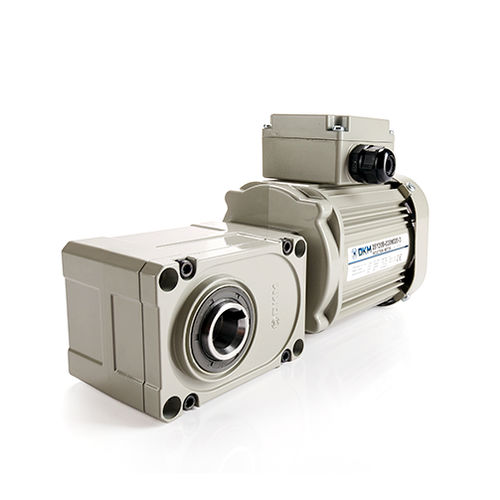

Three-phase gear-motor DSY seriesinductionplanetaryright angle
Add to favorites
Compare this product
Characteristics
- Motor type
- three-phase, induction
- Type
- planetary
- Shaft orientation
- right angle
- Shaft configuration
- hollow-shaft
- Power
- 100 W...500 W
- Voltage
- 220 V, 230 V
- Other characteristics
- IP65
- Gear ratio
Max.: 60 unit
Min.: 7.5 unit
- Operating temperature
Max.: 40 °C
(104 °F)Min.: -10 °C
(14 °F)
Description
Item : DSY series
Type : Induction motor / Brake motor
Number of poles : 4P
Number of phases : 3-phase
Voltage : 220~230V, 380~400V, 415~440V
Frequency : 50/60Hz
Gear raito : 7.5~60
Rating : Continuous (S1)
Heat resistance class : B Class (130)
Starting method : Direct start
Cooling method : Totally-enclosed fan-cooled type
Degree of protection : IP55(Induction Motor) / IP40 (Brake Motor)
Output shaft : Hollow Shaft type
Mounting method : For both flange and face mounting methods
Mounting direction : Installation in any direction/td>
Installation location : Indoor
Ambient temperature : -10℃ ∼ +40℃
Ambient humidity : 85% RH or less
Altitude : 1000m or less above sea level
Brake type : B type, DC spring brake
Lubrication method : Grease lubrication
Paint colour : Glossy Beige
