Moisture analyzer AQUATRACE®

COoxygencarbon dioxide

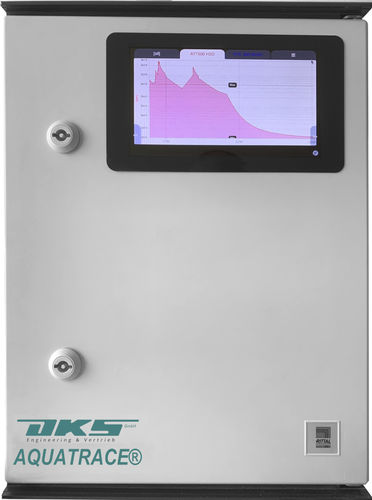

Analytical cabinet for measurement of moisture traces and multigas analyzer With the brand name AQUATRACE® we now present an analysis cabinet for gas residue moisture, with an additional multigas analyzer. In addition to an ATT500 trace moisture transmitter based on P2O5, another transmitter works according to the principle of thermal conductivity plus integrated selective infrared measurement of CO2, CH4, CO, H2O and other IR-active gases. In addition to (quasi-) binary gas mixtures of, inter alia, H2, He, Ne, Ar, N2, Kr, O2, CH4, CO2, NH3 and SF6, complex gas mixtures can also be analysed online by means of cross-sensitivity compensation. H2 in natural gas or biogas, for example, can be accurately determined. Of course, the concentrations of the IR-active gases can also be displayed and read out. The FTC400 is designed in enclosure IP65 and is specified for absolute sample gas pressures of up to 2 bar. A version for higher sample gas pressures is available on request. The FTC series operates without reference gases, even at the smallest measuring ranges of e.g. 0 vol.% – 0.5 vol.% of H2 in N2. The data is stored securely in a SQL database and visualized directly on the device via a touchscreen interface or on the entire intranet of your company. All features: • Platform-independent interface (browser application) and therefore • available anywhere on the intranet if desired. • Data export (*.pdf, *.csv) • Autoevents (min, max, alerts) • Labeling of events by the operator with time stamp and operator alias • Trend visualisation • 1-16 channels of different measuring devices • Integration of further sensors via RS485, RS232 and analogue input
