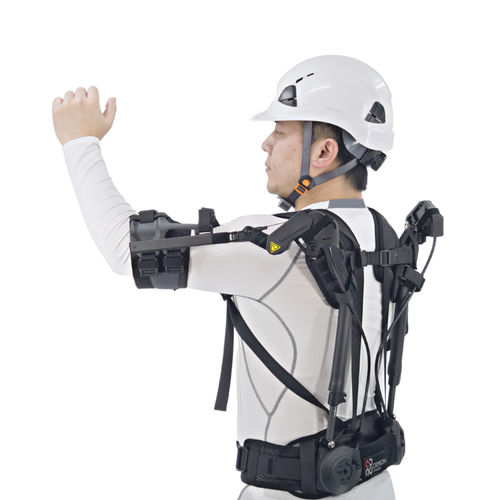

Mechanical exoskeleton CDYS

work

Provide assistance for frequent arm lifting tasks Vehicle factory Aircraft manufacture Shipyard Construction Agriculture Passive system No power required Total weight：2.6KG Assist level： 7 levels adjustable Applicable height：165-195（cm） Natural & Strong Light weight carbon fiber skeleton frame： 1.9KG The carbon fiber skeleton frame is designed based on the movement of the human scapula to provide natural movement and stable assisting. Due to the invention of ASB(anti-sliding belt), all the sliding or rotational mechanism on exoskeleton arms are replaced by simple and lightweight belts. By the unique combination of Suspending type arm support and ASB, supporting is only transfer by soft textiles and no tightening is required for stable attaching. The patented mechanical torque control technology greatly reduces the resistance to arm movement in non-working conditions. Strong support only starts when arms are lifted. CDYS ensures long-term wearing comfort and freedom in the non-assist state.
