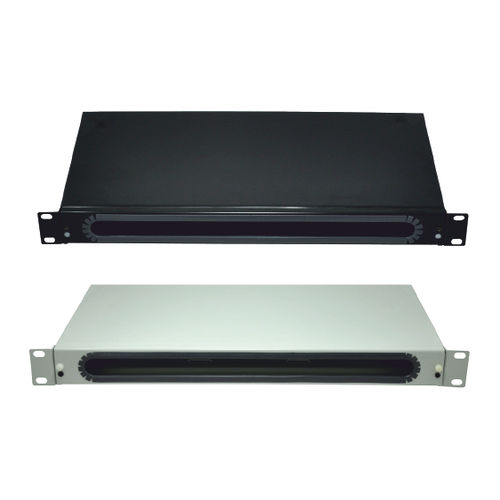

19" rack drawer ODF-19-1U- xZK series

1U

Cable Overlength Shelf/Drawer 19" 1U Q-Fiber consists of the box and distribution board with an oval opening. The installation of a drawer (DS) makes it possible to extend the cable slack shelf to an extendable version, called a cable overlength shelf. The embossments on the bottom of the ODF as well as the organisational fans (optionally) make it possible to organise cables and fibre-optic pigtails in an easy, functional and aesthetic way. Replaceable plugs make it possible to install various cable conduits. Movable side holders make it possible to withdraw the ODF by 35 mm from the mounting plane. Additional equipment may also include the cable overlength guide. Made of 1.2 mm steel sheet, Interchangeable hole plugs allow the installation of various cable glands, Embossing to attach cables inside the box, Small fans making it possible to organise the tubes or pigtail fibres (optional), Standard color: RAL7035 (light grey) glossy, RAL 9005 (black) glossy, other colors on request, Dimensions [H x W x D]: 44x485x230 [mm], Temporary side handles allow the withdrawal of ODF 19" by 35 mm.
