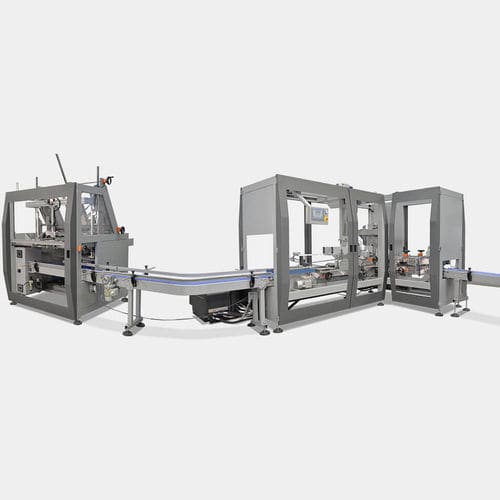

Vertical tray forming machine SKY

motorizedhot-melt gluecarton

Our vertical tray forming and closing machine is the ideal solution for casing small-medium sized products. Thanks to the vast range of solutions available, various types of end results can be obtained. It works with a flat blank, which is picked individually using suction cups from storage where the blanks are horizontally positioned; conveyor belts transfer the blank up to the centring station where a vertical press forms the case. Case forming takes place using an upper male forming unit and a lower female forming unit. Then, the glue is distributed to form the corners, intervening on the mechanical lifts that fold the corner flap 90°. The bottom of the case at this point is ready to pass to the next filling stations, which can be carried out by hand by an operator or automatically using the external systems or systems provided by DM PACK (robot, pick & place etc..) and fastening and closure of the upper flaps using tuck-in or hot glue application. There is a dedicated male/female unit for each format. Case formation using reliable and precise move ment of the vertical press Compact, robust, accessible and easy to use. Most of the adjustments are motorised, electrical and savable. Phase 1: Case/tray formation using vertical movement; closure and fastening of the corners with hot glue application. Phase 2: Filling, to carry out manually, using external devices or devices supplied by DM PACK. Phase 3: Case closure (if requested), using flap tuck-in system or using hot glue.
