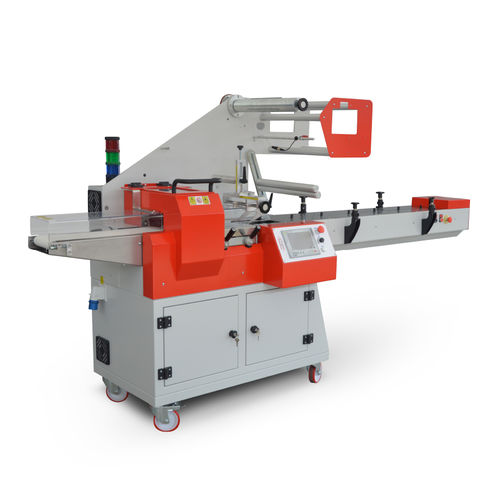

Automatic packaging machine Minitronic 400

horizontal

Minitronic 400 Horizontal packaging machine, designed for versatility and for more challenging packaging needs Characteristics The Minitronic 400 is a small, versatile and technologically advanced low-cost packaging machine, aimed at companies looking for a high quality product to optimise their packaging processes Technical characteristics • Power supply 220 V • Weight 450 Kg • Sealing bars diam. 120 mm • 2 Pairs of rollers, the first for the film feed, the second for sealing (diam 120 mm) • Safety casing with stoppage system in case of opening. • Motorised product unloading belt • Emergency buttons with immediate interruption of the work cycle. • End-of-line courtesy buttons • Photocell for print centring included. • Max film reel width 420 mm • Expandable reel-holder shaft • Sliding surfaces in AISI 304 steel compliant with CE standards • Dimensions 2950 x 630 x H1700ù • Maximum speed 120 pcs/min • Cut and seal motor increased to 1,9 N Technology • 3 axles controlled by servo motors and Schneider drive. • CAN Bus communication\ • Plc with integrated 7" colour touch screen. • Ability to store product recipes • Machine backup including parameters and recipe that can be exported and imported via USB stick • Print and product centring via touch screen. • Easy diagnosis for problem solving. • Connectable to teamviewer for assistance via LAN cable and VNC Optional • Rotary or heat transfer printer • Ethyl alcohol nebuliser • No product no Bag • AISI 304 stainless steel body • Euroslot • Zigzag blades • Fixed conformer. • Elongated bench • Double centre bar, to increase production speed • Long dwell head for MAP system • Pneumatic opening of hot rollers
