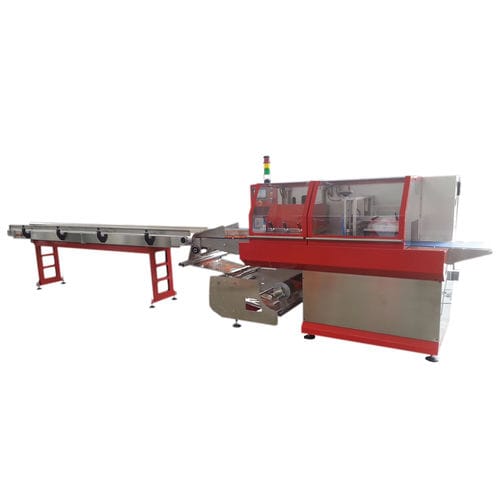

PLC-controlled packaging machine EWP 700

horizontal

EWP 700 Box Motion bottom loader Horizontal packaging machine, designed for customers who have to package products that are difficult to adapt and need to use gas, nitrogen and other gases for greater conservation purposes. Characteristics Horizontal packaging machine, designed for customers who have to package products that are difficult to adapt and need to use gas, nitrogen and other gases for greater conservation purposes. Technical characteristics • Power supply 220 V • Weight 700 Kg • Sealing bars with adjustable opening (max 200 mm) • 3 Pairs of rollers, the first two for the film feed, the second for sealing (diam 120 mm) • Roller stack with motorised lift system. • Machine in stainless steel and plates in Erga anodised aluminium • Safety casing with stoppage system in case of opening. • Motorised product unloading belt. • Emergency buttons with immediate interruption of the work cycle. • End-of-line courtesy buttons • Photocell for print centring included. • Max film reel width 700 mm. • Expandable reel-holder shaft • Sliding surfaces in AISI 304 steel compliant with CE standards • Dimensioni 4000 x 630 x H1700 • Max speed 50 pcs/min • Easy-to-open crumb collector casing Technology • 4 axles controlled by servo motors and Schneider drive. • CAN Bus communication • Plc with integrated 7” colour touch screen • Ability to store product recipes • Machine backup including parameters and recipe that can be exported and imported via USB stick • Print and product centring via touch screen. • Easy diagnosis for problem solving. • Connectable to teamviewer for assistance via LAN cable and VNC • Machine state indicator signal.
