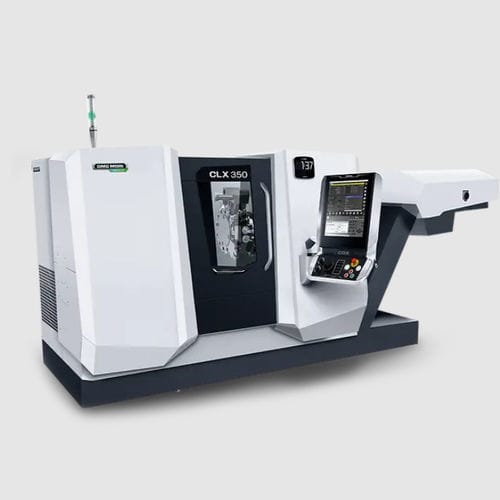

CNC turning center CLX 350

3-axisfor metaluniversal

Complete machining of complex parts thanks to sub spindle and Y-axis Highly dynamic spindle drive 16,5 kW (40% DC) and 168 Nm (40% DC) with max. speed up to 5.000 rpm sub spindle as integrated motor spindle ISM 36 with power 16,2 kW (40% DC), 62 Nm (40% DC) and max. speed up to 5.000 rpm with the possibility for rear-face machining. Y axis with travel range ± 40 mm for superior milling operations, i.e. for complete lateral surface machining More efficiency for machining with a bar feeder ø65 mm bar capacity in standard Optional part catcher for parts up to ø65 x 200 mm and weight 3 kg Automation interface according to DMG MORI standard compatible with most bar feeders (option) Compact design with large working area for the machining of customized parts Machining of parts with diameter up to ø320 mm Travel in Z axis 540 mm Small foot print 6,7 m2 Direct measuring system in standard NEW: IoTconnector for digitized and connected production processes DMG MORI NETservice and MESSENGER preinstalled Specially preconfigured for your machine prior to delivery Integrated firewall with automatic updates guarantees maximum protection 3D controls with the unique 19" SLIMline multi-touch control panel and SIEMENS or 19" SLIMline touch control panel and FANUC. Create your own individual solution! 19" DMG MORI SLIMline multi-touch control panel and SIEMENS for intuitive use and easy operation 19" DMG MORI SLIMline touch control panel and FANUC for 3D simulation with easy contour verification DMG MORI SMARTkey: Personalized with 8 GB additional storage
