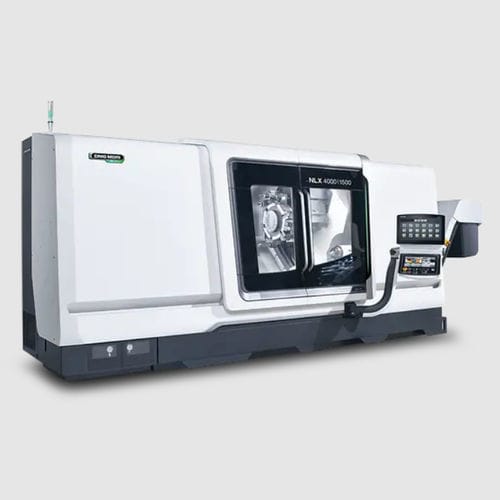

CNC turning center NLX 40003-axisfor large-diameter partsfor large workpieces
Add to favorites
Compare this product
Characteristics
- Control type
- CNC
- Number of axes
- 3-axis
- Applications
- for automotive applications, for large workpieces, for large-diameter parts, for oil industry applications
- Performance
- high-precision, high-rigidity, high-performance
- Other characteristics
- Y-axis
- Associated function
- milling
- Diameter
600 mm
(23.62 in)- Maximum part length
1,584 mm
(62 in)- Maximum cutting diameter
117 mm
(5 in)- Bar capacity
117 mm
(5 in)- Axe X
365 mm
(14 in)- Axe Z
1,685 mm
(66 in)- Maximum torque
68 Nm, 100 Nm
(50 ft.lb, 74 ft.lb)
Description
Elaborate and Dynamic Parts Machining
Max. Y-axis stroke
120 mm
Slideway area ratio (compared with conventional machine): 50％ UP (X-axis) / 90％ UP (Z-axis)
Large-diameter ball screws adopted
The largest through-spindle hole diameter in its class: 145 mm (5.7 in.) / 185 mm (7.3 in.)
Improved milling power
BMT (Built-in Motor Turret) Technologie
Thoroughly controlled thermal displacement: Coolant circulation inside the castings (750 type)
Positioning accuracy (C-axis): 6.8 sec.
Power-saving
Energy-saving setting and visualization of
energy-saving effect
