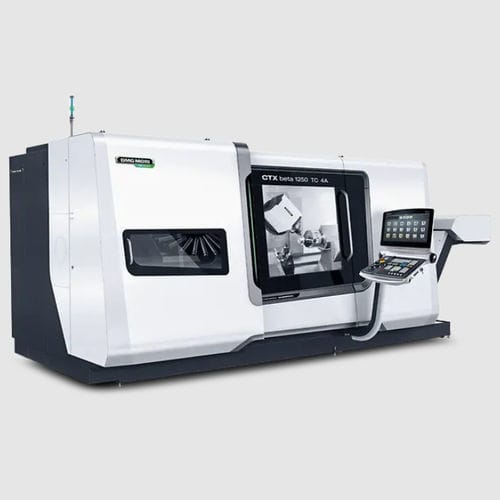

CNC milling-turning center CTX beta 1250 TC 4A

universal3-axisspindle

Max. workpiece length 1,185 mm Max. bar capacity diameter 102 mm Maximum productivity thanks to parallel processing with a second tool carrier Second tool carrier as a turret with 12 or 16 driven stations (VDI40 / VDI30) Turret as DirectDrive with 10,000 rpm and 80 mm Y-stroke Ideal for serial production through optional automation solutions, Integrated handling system or portal loading Optional with complete package for bar machining with automatic workpiece pickup device ± 100 mm Y-stroke for external machinings Swivel range of the B axis ± 110 ° for maximum flexibility Large machining compartment for workpieces up to Ø 500 x 1,185 mm Circular diameter up to 500 mm Bore or turn 400 mm long workpieces horizontally 470 mm outer diameter with vertical position of the B-axis (with 70 mm tool length) Maximum precision and temperature stability with a holistic cooling concept and linear scales Linear scales in the travelling column axes (X1 / Y1 / Z1) and in the X2 axis of the turret, optionally in Y2 / Z2 (turret) and in Z3 (counter spindle) B-axis with Direct Drive for maximum precision with a positioning accuracy < 1µm Water-cooled integrated spindle motors for main and counter spindles Cooled turret drive and cooled X / Y / Z motors and lower turret Consistent rigidity thanks to stiff size 45 guideways and Ø 40 mm ball screws
