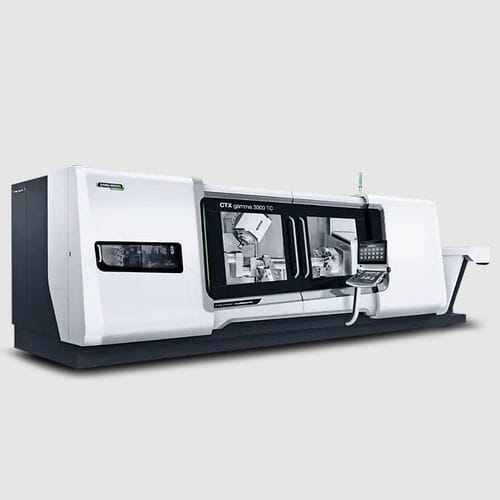

CNC milling-turning center CTX gamma 3000 TC

universal3-axisspindle

Max. workpiece length 3,000 mm Max. bar capacity diameter 127 mm Integrated spindle drives with 4,000 Nm at the main spindle for maximum cutting performance Optional counter spindle for 6-sided complete machining with up to 2,200 Nm Material removal rate ISM 102 to 1.584 cm3 / min (CK45) Integrated C-axis (0.001 °) 420 mm Y-stroke for more flexibility Automatic tool change. 36-fold disc magazine in standard, max. 180 stations in the optional chain magazine. Optional second tool carrier for highly productive turn & mill machining VDI 40 turret rated at 4,000 rpm, 28 Nm and 10 kW or VDI 40 Direct Drive turret rated at 10,000 rpm, 34 Nm and 14.2 kW "< 30 sec. tool set-up time and < 6 μm repeatability with TRIFIX® precision quick-change interface as standard" Easy to use turret steady rests and turret centres with the technology cycle (optional) Accuracy Maximum precision and temperature stability Direct measuring systems in all axes by Magnescale Cooling of the X / Y / Z-axis motors and the turret drives Maintenance-free linear drive in the Z-axis * with 5 years warranty
