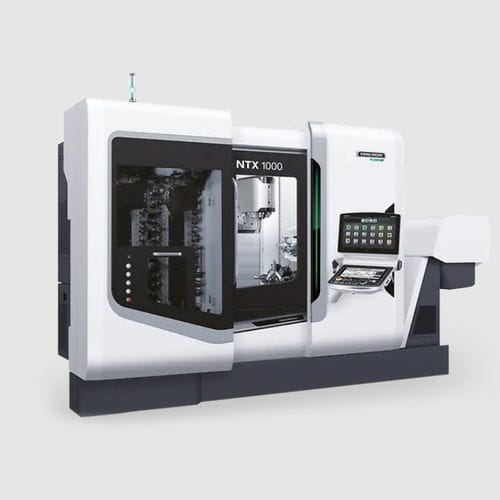

CNC milling-turning center NTX 1000horizontalvertical5-axis
Add to favorites
Compare this product
Characteristics
- Control type
- CNC
- Type
- horizontal, vertical
- Number of axes
- 5-axis
- Structure
- spindle
- Other characteristics
- high-precision, high-rigidity, direct-drive, for aerospace applications, with linear motor, for medical applications
- Diameter
430 mm
(16.93 in)- X travel
455 mm
(17.91 in)- Y travel
105 mm
(4.13 in)- Z travel
800 mm
(31.5 in)- Spindle speed
12,000 rpm, 120,000 rpm
(75,398.224 rad.min-1, 753,982.237 rad.min-1)
Description
Max. workpiece length
800 mm
Max. bar capacity diameter
65 mm
The B-axis rotation range of 240° and rotation speed of 100 min–1, the X-axis travel of 455 mm (17.9 in.)
Equipped with a Capto C5 tool spindle as standard, max. spindle speed of 12,000 min-1, 20,000 min–1 (Option)
Thoroughly controlled thermal displacement by cooling oil circulation in the body
Peripheral equipment
Full range of optional equipment for automation, including an in-machine travelling robot and workpiece unloader
