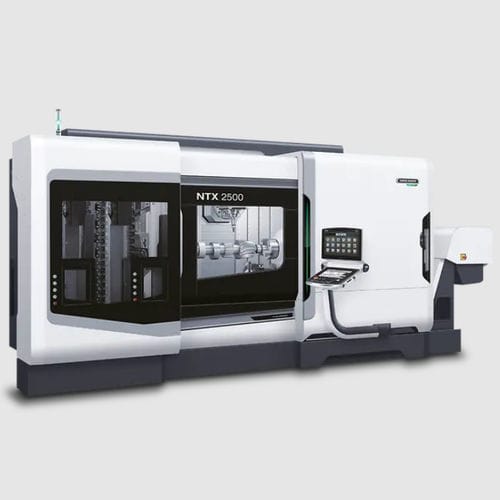

CNC milling-turning center NTX 2500

horizontalvertical5-axis

Max. workpiece length 3,135 mm Max. bar capacity diameter 80 mm The compactMASTER, the world’s shortest tool spindle in its class (350 mm), ensures a wide machining envelop to increase productivity Wide range of machining area with the X-axis stroke of 675 mm (-125 - ＋550 mm) and the Y-axis 300 mm (±150 mm) Y-axis stroke of ±40 mm of Turret 2 expands the machining range 6-face machining is available with Spindle 2 to complete the machining of components on one machine Cooling oil circulation in spindle motors and ball screws controls thermal displacement and achieves highly accurate machining Energy-saving Energy-saving Setting and Visualization of Energy-saving Effect
