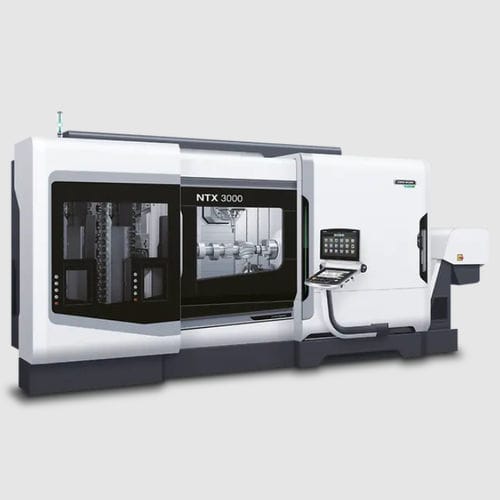

CNC milling-turning center NTX 3000horizontalvertical5-axis
Add to favorites
Compare this product
Characteristics
- Control type
- CNC
- Type
- horizontal, vertical
- Number of axes
- 5-axis
- Structure
- spindle
- Other characteristics
- high-performance, high-precision, with turret, compact, high-productivity, direct-drive, for aerospace applications, for medical applications, for the automobile industry
- Diameter
670 mm
(26.38 in)- X travel
675 mm
(26.57 in)- Y travel
300 mm
(11.81 in)- Z travel
3,062 mm
(120.55 in)
Description
Max. workpiece length
3,125 mm
Max. bar capacity diameter
102 mm
The compactMASTER, the world’s shortest tool spindle in its class (350 mm), ensures a wide machining envelop to increase productivity
Wide range of machining area with the X-axis stroke of 675 mm (-125 - ＋550 mm) and the Y-axis 300 mm (±150 mm)
Y-axis stroke of ±40 mm of Turret 2 expands the machining range
6-face machining is available with Spindle 2 to complete the machining of components on one machine
Cooling oil circulation in spindle motors and ball screws controls thermal displacement and achieves highly accurate machining
Energy-saving
Energy-saving Setting and Visualization of Energy-saving Effect
