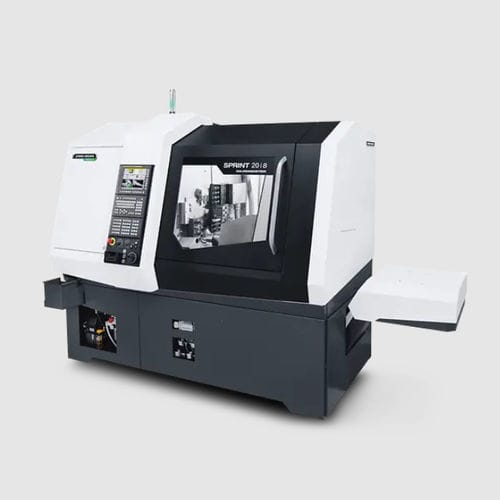

CNC turning center SPRINT 20|86-axishigh-rigiditywith linear motor
Add to favorites
Compare this product
Characteristics
- Control type
- CNC
- Number of axes
- 6-axis
- Performance
- high-rigidity
- Options and accessories
- with linear motor
- Diameter
20 mm
(0.79 in)- Spindle speed
6,000 rpm, 10,000 rpm
(37,699.112 rad.min-1, 62,831.853 rad.min-1)- Maximum part length
180 mm
(7 in)- Bar capacity
20 mm
(1 in)- Axe X
50 mm
(2 in)- Axe Z
60 mm
(2 in)- Nominal power
0.9 kW, 1.5 kW, 2.2 kW
(1.2 hp, 2 hp, 3 hp)- Maximum torque
5 Nm, 14 Nm
(4 ft.lb, 10 ft.lb)
Description
Complete machining of workpieces measuring up to ø 20 × 600 mm in a footprint of under 2m²
Max. Y-axis stroke
325 mm
SWISSTYPEkit optional for short and long part turning on one machine
Total of 25 tool stations
8 driven tool stations as standard
Driven tools spindles 6,000 rpm, 1.43 Nm, 0.9 kW
2 frontal tools besides counter spindle
Control panel with 10.4" colour display and FANUC 32i
2 control channels, 6 linear axes and up to 2 C-axes
Tool Monitoring System with graphical tool load display as option
Up to 3 tools working simultaneously
Highest rigidity and accuracy
Constant stiffness due to large ball guide ways with balanced distance
Vertical covers and free chip fall
Integrated spindle motors for main and counter spindle with direct measuring systems
Thermo-symmetric machine bed design for highest accuracy
