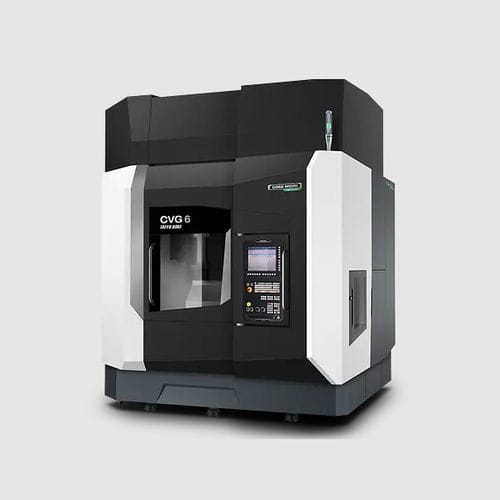

External cylindrical grinding machine CVG 6

internal cylindricalworkpiecefor gears

2-Pallet APC (Auto. Pallet Change) option Reduction of non-grinding time by allowing workpiece change and set-up during grinding operation. Significant improvement of productivity by making unattended operation time longer. Work spindle swing φ650 mm / Table size φ550 mm Wheel spindle B-axis option Standard is turret type with 3-position indexing at 0° / 22.5° / 180°. Turret type with continuous indexing function can be selected as an option. Minimum indexing unit is 0.0001°, between the range of ±30° for ID spindle, ±45° for OD spindle. Work spindle C-axis option Continuous indexing of work spindle is available by equipping Direct Drive motor, at minimum indexing unit 0.0001°. Allows profile grinding of curvic coupling and cam shape, etc. Other features Rotary dresser (Single point dresser available as an option) Linear scale for X-axis (One for Z-axis available as an option)
