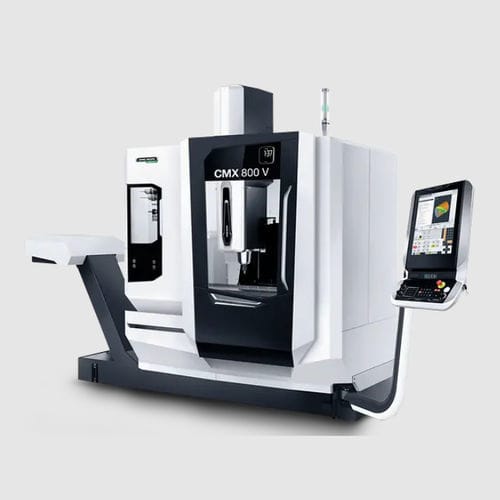

3-axis CNC milling center CMX 800 V

verticalwith moving tablefor the automobile industry

The solution-based CMX V - from now on with IoTconnector and direct measuring system in standard Max. workpiece length 1,100 mm Max. workpiece width 560 mm Rigid C-frame concept for highest stability and perfect ergonomics Improved ergonomics with movable table in X axis FEM-optimized design & construction with small foot print Rigid Y-axis concept in whole range of travel Precision in every component and detail Accuracy of positioning in all axes of 6 µm (according to ISO 230-2) Thermal compensation ensures stable, precise and highest quality production process Ball-screws made in first class of tolerances (IT 1) The best choice of 3D controls - with SIEMENS, HEIDENHAIN or FANUC! 19" DMG MORI SLIMline multi-touch control panel and SIEMENS for intuitive use and easy operation 19" DMG MORI SLIMline​​​​​​​ multi-touch control panel and HEIDENHAIN for easy and efficient programming 15″ DMG MORI SLIMline control panel and MAPPS on FANUC for 3D simulation with easy contour verification NEW: inlineMASTER spindle Improved cutting performance due to 53 % higher spindle power and 45 % higher torque with the 15.000 min−1 inlineMASTER (20 kW, 121 Nm with 40 % ED) BIG PLUS®-interface for longer tool life NEW: IoTconnector for digitized and connected production processes DMG MORI NETservice and MESSENGER preinstalled Specially preconfigured for your machine prior to delivery Integrated firewall with automatic updates guarantees maximum protection
