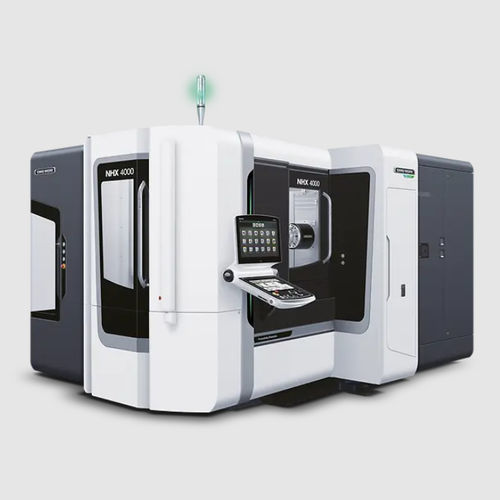

3-axis CNC milling machine NHX 4000
horizontalprecisioncompact

3-axis CNC milling machine
3-axis CNC milling machine
3-axis CNC milling machine
3-axis CNC milling machine
3-axis CNC milling machine
3-axis CNC milling machine
3-axis CNC milling machine
Add to favorites
Compare this product


Characteristics

Number of axes
3-axis
Spindle orientation
horizontal
Other characteristics
precision, compact, high-rigidity
X travel

560 mm
(22.05 in)

Y travel

560 mm
(22.05 in)

Z travel

660 mm
(25.98 in)

Rotational speed

15,000 rpm
(94,248 rad.min-1)

Workpiece max height

900 mm
(35 in)

Work feed X-axis

60,000 mm/min
(39 in/s)

Work feed Y-axis

60,000 mm/min
(39 in/s)

Work feed Z-axis

60,000 mm/min
(39 in/s)

Table load capacity

400 kg
(882 lb)

Description

Max. workpiece height 900 mm Max. workpiece weight 400 kg Dynamic Direct drive table available with 100 rpm High rigidity bed by stepped X-axis guideways. Large diameter spindle bearing of 70 mm Pallet size 400 x 400 mm Quick and easy to set up thanks to ist three-point support Precise Direct scale feedback with 0.01 µm resolution
