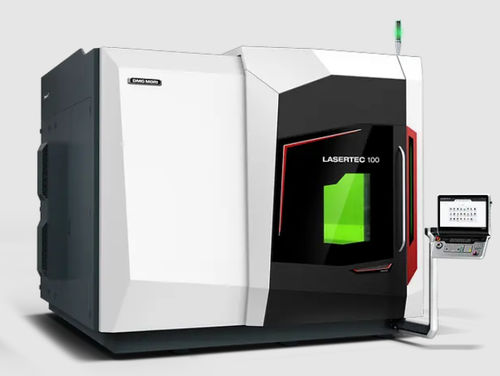

CNC drilling machine LASERTEC 100 PowerDrill

5-axishigh precisionhigh-speed

Laser precision machine for all demanding 5-axis drilling operations up to 1,100 mm component diameter with a maximum height of 1,500 mm New traveling column concept for constant rigidity and increased positioning accuracy P10 (DIN ISO 2230-2) in the entire work area Larger work area X = 1000 Y = 1000 Z = 1000 (LASERTEC 100 PowerDrill) X = 1600 Y = 1000 Z = 1000 (LASERTEC 160 PowerDrill) High dynamics through linear drives for X / Y 80 m / min; 7 m / s² as well as an optimized cooling concept with water-cooled motors, linear guides and ball screw drive State-of-the-art components for the best performance Application-specific axis configurations for maximum flexibility through various laser head kinematics (optional B-axis head ± 150 °) and table variants (B- / C-axis) e.g. variable collimation, breakthrough detection, capacitive distance sensors, conoscopic sensor, optional tool changer etc. Available with high precision 12-23 kW QCW-fibre laser Available as a machine version PowerDrill for pure laser drilling or version PowerShape (from Q1/2023) for machining of shaped hole geometries with conical exit funnels Complete series with Siemens 840D solutionline and special LASERSOFT PowerDrill / PowerShape software packages Technology leader in 5-axis precision laser drilling of cooling air holes for aerospace and IGT Contact-free machining without need of electrodes and without tool wear Highest repeatability and reproducability Different laser sources for varios applications High-speed shutter enables Synchro-Drill (synchronised laser drilling with a rotating component) PatternDrilling: Laser drilling of segments or single rows
