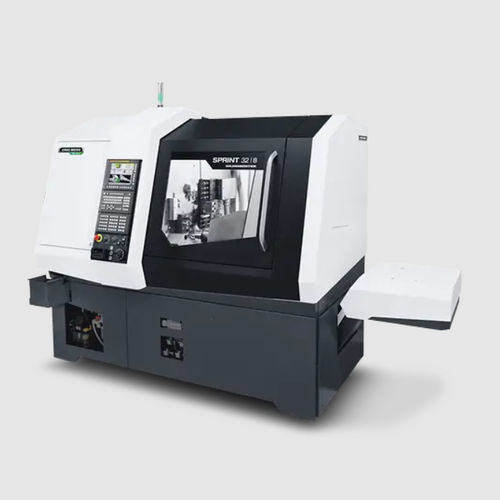

CNC turning center SPRINT 32|96-axis8 toolshigh-rigidity
Add to favorites
Compare this product
Characteristics
- Control type
- CNC
- Number of axes
- 6-axis
- Number of tool stations
- 8 tools
- Performance
- high-rigidity
- Diameter
32 mm
(1.26 in)- Spindle speed
8,500 rpm
(53,407.075 rad.min-1)- Maximum cutting length
240 mm
(9 in)- Bar capacity
32 mm, 38 mm
(1 in, 1 in)- Axe X
70 mm
(3 in)- Axe Z
100 mm
(4 in)- Nominal power
2.2 kW, 5.5 kW
(3 hp, 7.5 hp)- Maximum torque
14 Nm, 40 Nm
(10 ft.lb, 30 ft.lb)
Description
Complete machining of workpieces up to ø 32 × 600 mm in a footprint of less than 2.8 m²
Max. Y-axis stroke
405 mm
SWISSTYPEkit optional for short and long part turning on one machine
Platform means modularity and flexibility
Total of 41 tool stations
Driven tools spindles 6,000 rpm, 3 Nm, 1 kW
Control panel with 10.4" colour display and FANUC 31i-B5 Plus
2 control channels, 6 linear axes ,2 C-axes and a B axis
Tool Monitoring System with graphical tool load display as option
Up to 2 tools working simultaneously
Platform is milestone for Digitization
Constant stiffness due to large ball guide ways with balanced distance
Vertical covers and free chip fall
Integrated spindle motors for main and counter spindle with direct measuring systems
Thermo-symmetric machine bed design for highest accuracy
